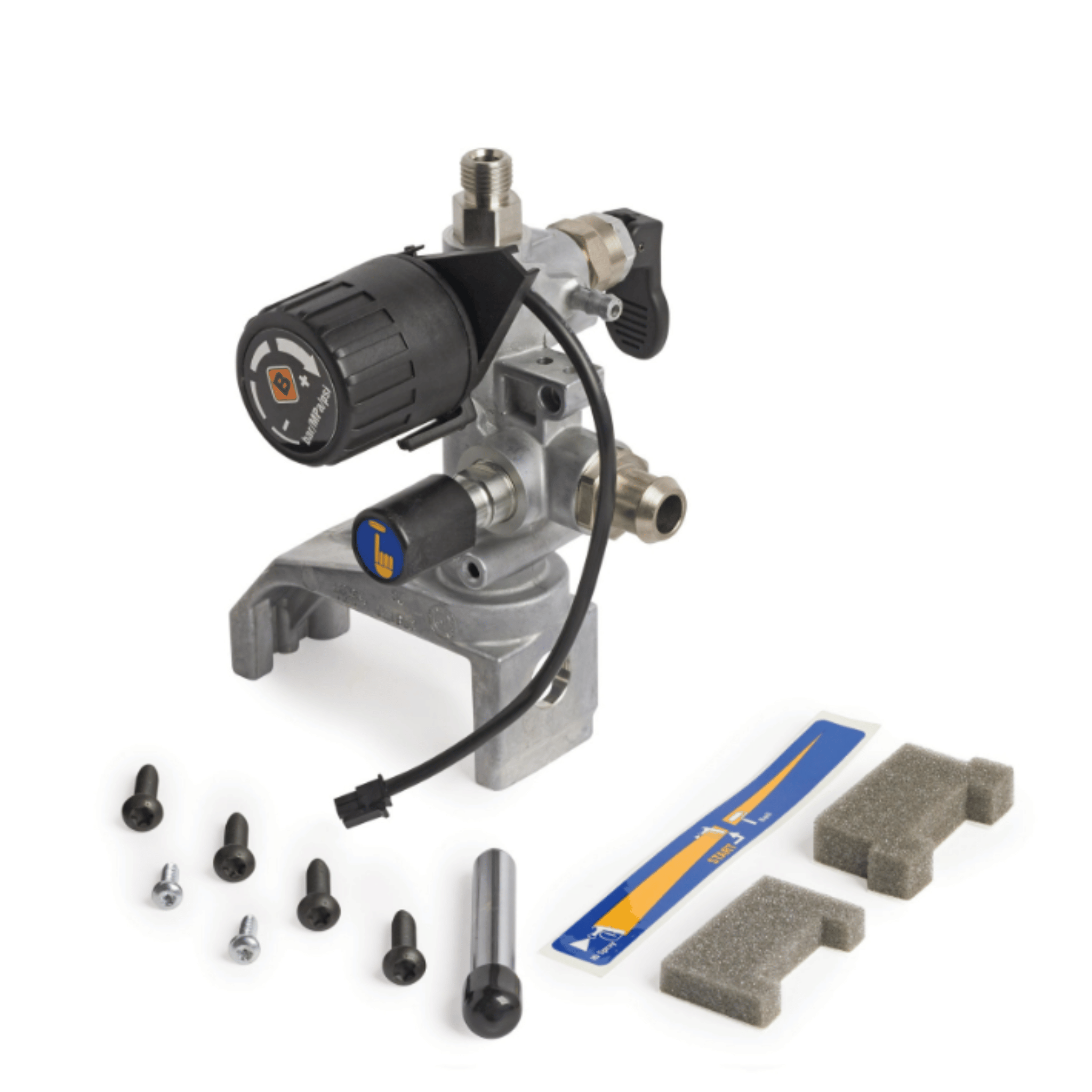

Upgrade your sprayer performance with the Graco 17V781 Pump Assembly, a genuine OEM fluid pump section engineered for long-lasting durability and dependable daily use. This high-quality replacement pump is designed specifically for a range of popular Graco airless paint sprayers, including:
Graco Magnum X5 # 262800 Series E
Graco Magnum X7 # 26805 Series D
Graco Magnum LTS15 # 17K955 Series A
Graco Magnum LTS17 # 17K960 Series A
Built for Superior Durability & Easy Maintenance
The 17V781 Fluid Pump Assembly is part of Graco’s trusted Fluid Pump line—known for handling demanding workloads with reduced downtime. Its rugged construction ensures smooth operation, long service life, and reliable performance for professional painters who depend on their equipment every day.

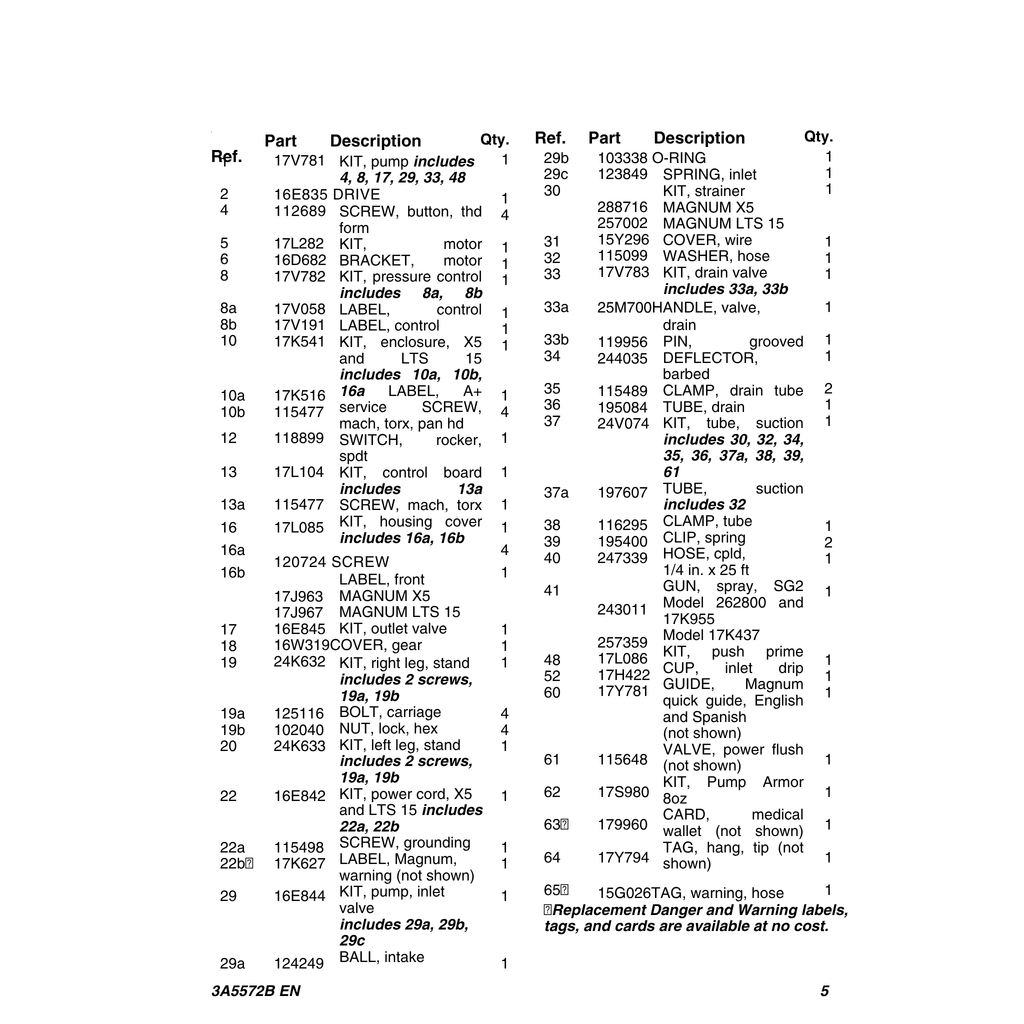

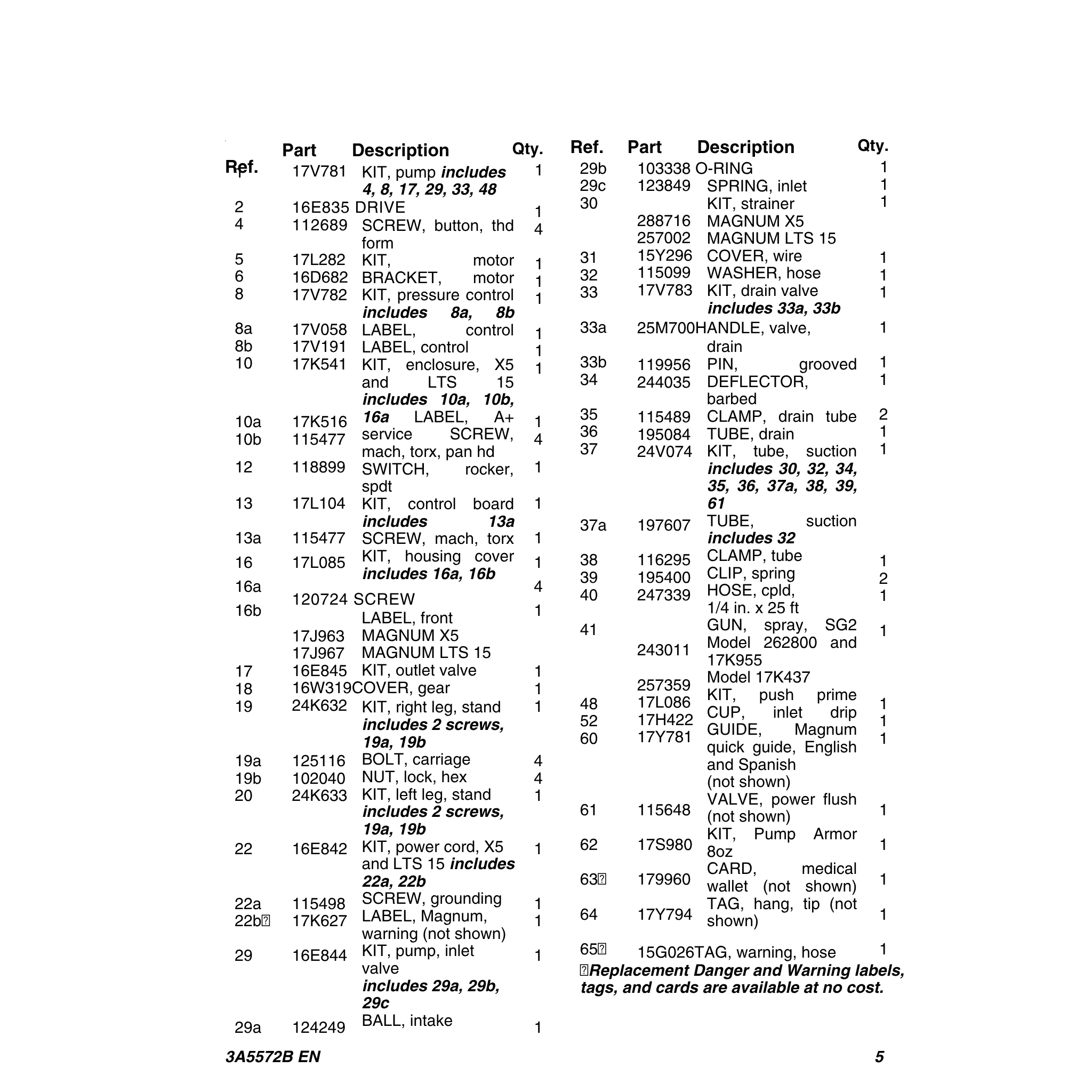

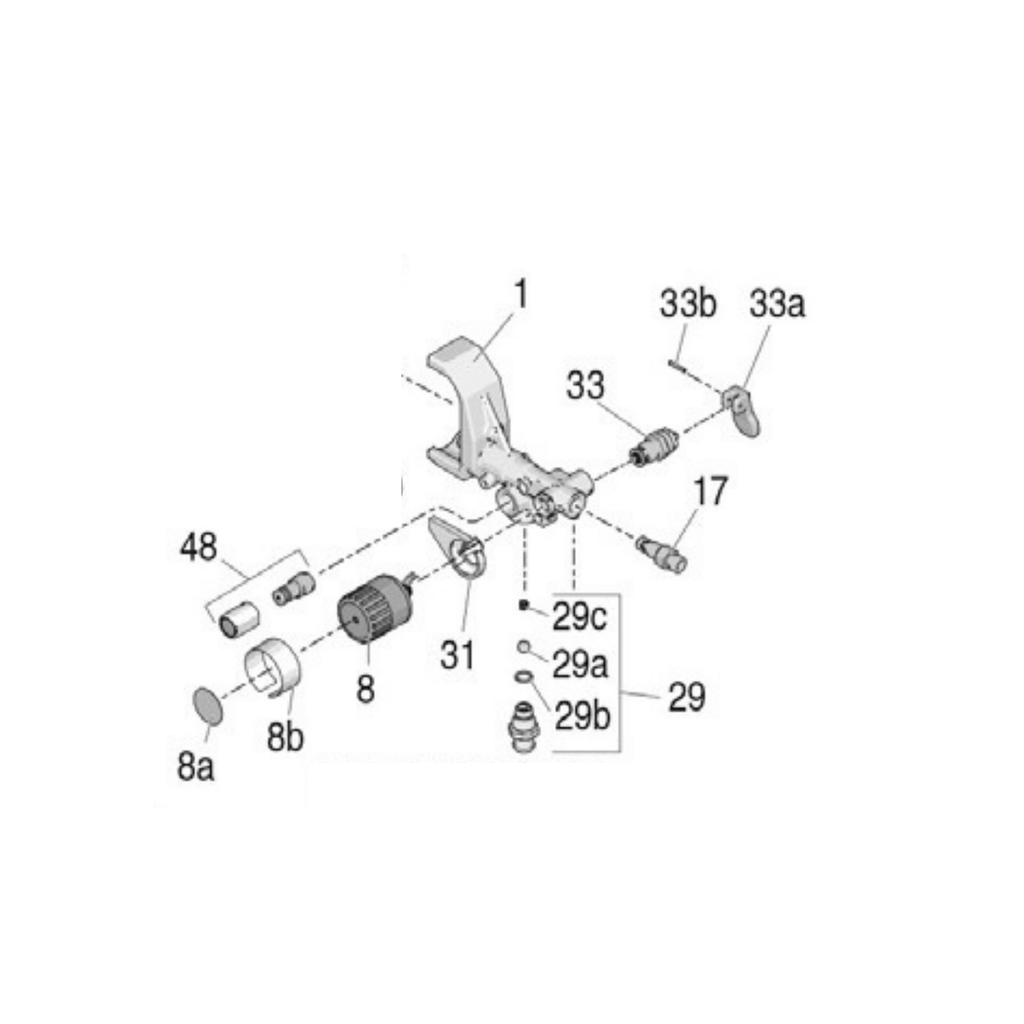

Includes Detailed Repair Diagram
Each fluid pump assembly includes a detailed parts diagram, making it easy to identify components, order replacement parts, and perform routine maintenance.
Access Repair Manuals Online
Need service guidance? You can visit our website for step-by-step repair manuals and additional support materials to help you keep your sprayer in top working condition.
includes:
112689- screw
17v782- pressure control
16e845- outlet valve
16e844- inlet valve
17v783- drain valve
17L086- push prime
